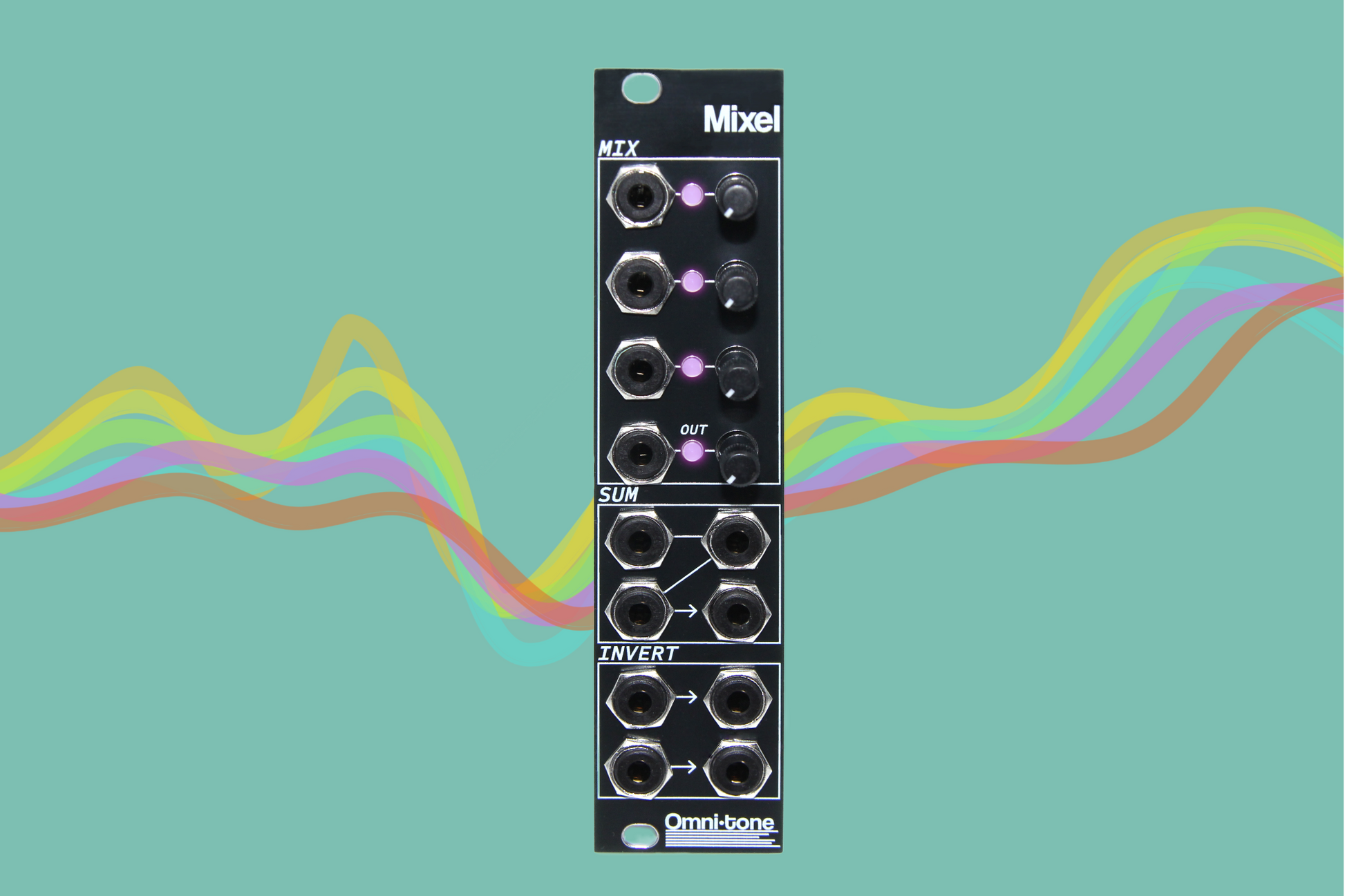

Meet Mixel: A eurorack modular synth that can mix 3 inputs, sum 3 inputs, and invert 2 channels! A handy addition to any skiff!
Combine and buffer 3 signals (CV or audio) in the MIX section with dedicated level knobs (fade from 0 (muted) to 2x boost) and an output signal attenuator. Featuring LEDs which show the polarity of the signal (blue for positive, red for negative, and purple for audio rate).
Sum up to 3 signals in the SUM section to make some cool audio or CV signals.
Invert any signal using the INVERT section, with two separate invert channels!
TECHNICAL SPECS: - Module Size: 3U X 6HP X 25 mm Deep. - Current Draw: 15mA@ 12V, 15mA@ -12V.

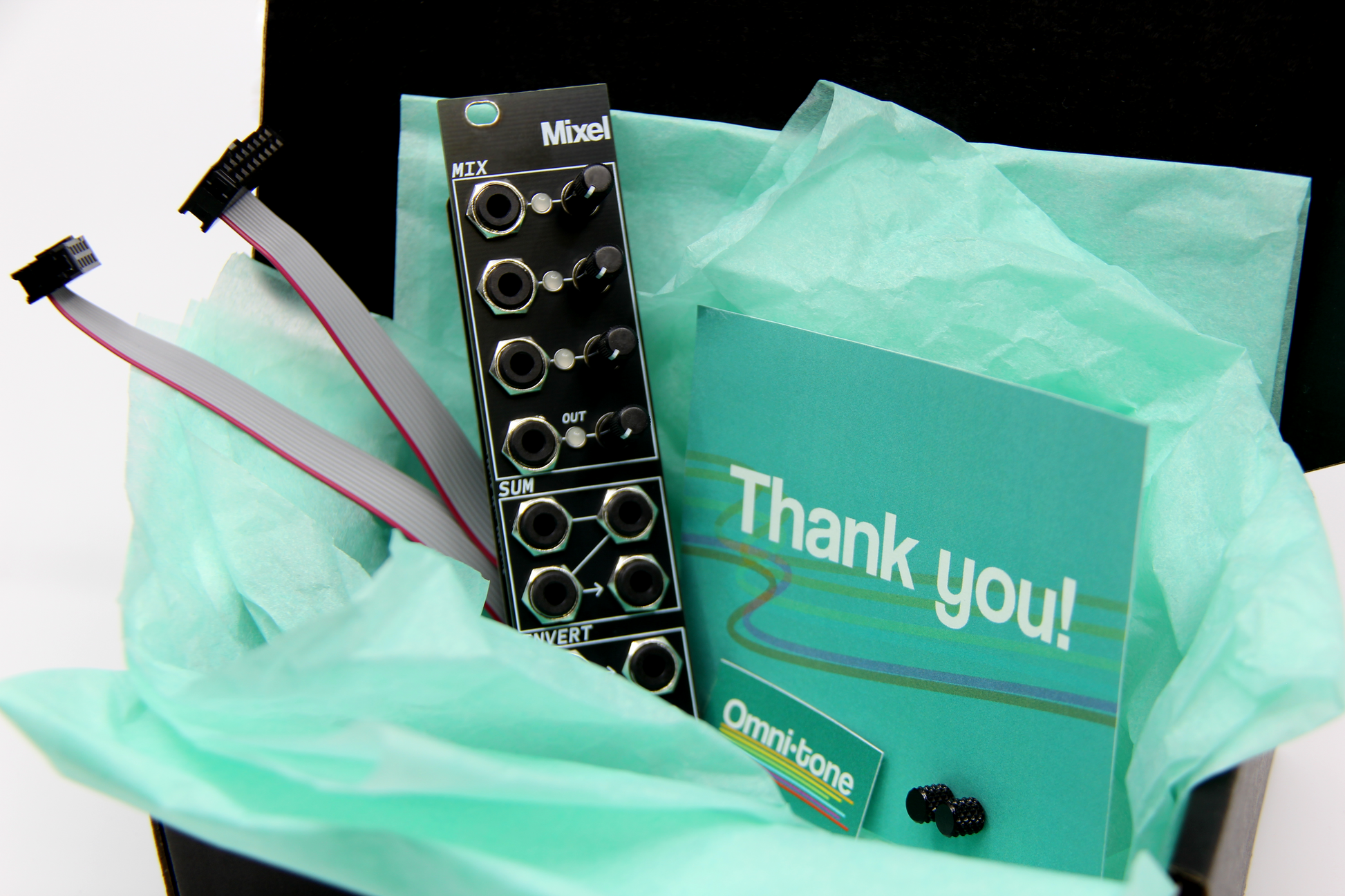

WHAT'S IN THE BOX? - 1x Mixel Module - 2x Thumb Screws - 1x Power Cable - 1x Sticker
